Inside/Outside Rail (IO) Hoist Series

Request a Quote Find a Dealer

Galbreath Inside/Outside Rail (IO) cable hoists are designed to carry both inside and outside rail containers, maximizing its versatility.

Features
  • Dual Outboard Mounted Lift Cylinders (all U-series & AH-series models)
  • Dual In-board mounted lift cylinders (all AF/AFX models)
  • Pintle hitch adaptable rear apron
  • Split light bumpers
  • Heavy duty rear hinge
  • Backup alarm
  • Hoist maintenance props
  • Tarper / valve mounting platform
  • Behind the cab oil reservoir
  • Return oil filter / 3 microns
  • Stationary rear hold down
  • Inside Rail Rollers (U-series IO, IX and AH-series IO models only)
  • Air assist auto folding ICC bumper (auto folding on IX models only)
  • Hydraulic tube plumbing in frame
  • LED – DOT stop, turn and side marker lights
  • Hoist up alarm with signal light
  • Single cylinder reeving system
  • Mount plates and mounting bolts
  • Hydraulic hose plumbing at control valve
  • Direct mount pump
  • Cable end holder
  • Sealed wiring harness
  • Manual control valve levers (2 up to 7 when applicable)
  • Inside air controls
  • Angle Iron on top of main frame rails
Options
  • Pioneer® tarping systems
  • Pintle hooks and towing applications
  • Auxiliary hydraulic hook ups and wet kits
  • Outside rail skid plates
  • Outboard supported side rollers (standard on 75k lb. and AH-series models)
  • Toolboxes
  • Fenders
  • Rear window screen protection
  • Lift axles
  • Auxiliary container stops and rear hold downs
  • Various cable ends
  • Safety and additional LED work lights
  • Speed & RPM limiting parameters
  • Scale systems
  • Backup camera systems
  • Pumps and PTO's
Models
U3-IO-156

SINGLE AXLE--30k--156 MODELS--Inside/Outside Rail

AF75-IO-194

TANDEM AXLE--75k--194 MODELS--Inside/Outside Rail

AF75-IO-174

TANDEM AXLE--75k--174 MODELS--Inside/Outside Rail

AF75-IX-174

TANDEM AXLE--75k--174 MODELS--Extendable Tail 60", Inside/Outside Rail

AF75-SI-174

TANDEM AXLE--75k--174 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AF-IO-174

TANDEM AXLE--60k--174 MODELS--Inside/Outside Rail

AF-IO-194

TANDEM AXLE--60k--194 MODELS--Inside/Outside Rail

AF-IX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 60", Inside/Outside Rail

AF-IX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail 60", Inside/Outside Rail

AF-SI-174

TANDEM AXLE--60k--174 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AF-SI-186

TANDEM AXLE--60k--186 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AF-SI-194

TANDEM AXLE--60k--194 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AFXC-IO-174

TANDEM AXLE--60k--174 MODELS--Canada Unit-Recessed Vertical Sheave, Extra Top Coverage--Outside Rollers, Inside/Outside Rail

AFX-IO-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Inside/Outside Rail

AFX-IO-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Inside/Outside Rail

AFX-IX-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail 60", Inside/Outside Rail

AFX-IX-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail 60", Inside/Outside Rail

AFX-IOX-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail/Long 55", Inside/Outside Rail

AH60-IO-08-22

TANDEM AXLE--60k--174 MODELS--8" Main Frame; 2" Sub-Frame--Inside/Outside Rail

AH60-IO-08-24

TANDEM AXLE--60k--194 MODELS--8" Main Frame; 2" Sub-Frame--Inside/Outside Rail

AH60-IO-10-22

TANDEM AXLE--60k--174 MODELS--10" Main Frame; No Sub-Frame--Inside/Outside Rail

AH60-IO-10-24

TANDEM AXLE--60k--194 MODELS--10" Main Frame; No Sub-Frame--Inside/Outside Rail

AH60T-IO-08-22

TANDEM AXLE--60k--174 MODELS--8" Main Frame; 2" Sub-Frame--Inside/Outside Rail - Telescopic Lift Cylinders

AH60T-IO-10-22

TANDEM AXLE--60k--174 MODELS--10" Main Frame; No Sub-Frame--Inside/Outside Rail - Telescopic Lift Cylinders

AH75-IO-08-22

TANDEM AXLE--75k--174 MODELS--8" Main Frame; 2" Sub-Frame--Inside/Outside Rail

AH75-IO-08-24

TANDEM AXLE--75k--194 MODELS--8" Main Frame; 2" Sub-Frame--Inside/Outside Rail

AH75-IO-10-22

TANDEM AXLE--75k--174 MODELS--10" Main Frame; No Sub-Frame--Inside/Outside Rail

AH75-IO-10-24

TANDEM AXLE--75k--194 MODELS--10" Main Frame; No Sub-Frame--Inside/Outside Rail

U5-IO-194

TANDEM AXLE--60k--194 MODELS--Inside/Outside Rail

U5-IR-174

TANDEM AXLE--60k--174 MODELS--8" Main Frame 2" Sub-Frame - Inside Rail Only, No Side Rollers

U5-IX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 60", Inside Rollers, Inside/Outside Rail

U5-SI-174

TANDEM AXLE--60k--174 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

U5-SI-186

TANDEM AXLE--60k--186 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

U5-SI-194

TANDEM AXLE--60k--194 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

U5-XI-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail/Long Tail 48", Inside Rail - 3/4 Trough

U5-IO-194-10

TANDEM AXLE--60k--194 MODELS--10" Main Frame, No Sub-Frame - Inside/Outside Rail

U5-IR-174-10

TANDEM AXLE--60k--174 MODELS--10" Main Frame, No Sub-Frame - Inside Rail Only

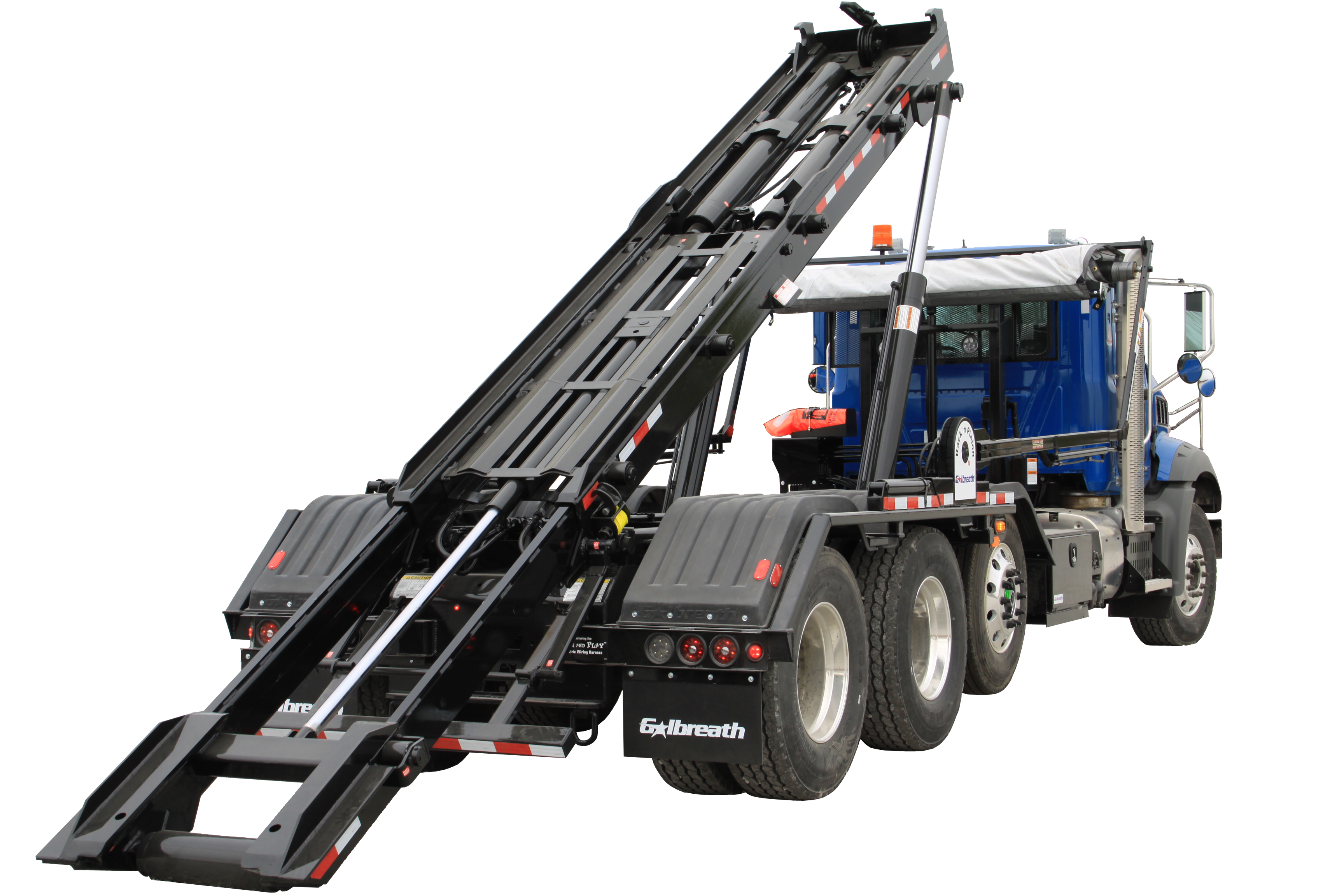

U5-IX-174-10

TANDEM AXLE--60k--174 MODELS--10" Main Frame, No Sub-Frame - Extendable Tail 60", Inside Rollers, Inside/Outside Rail

U5-XI-174-10

TANDEM AXLE--60k--174 MODELS--10" Main Frame, No Sub-Frame - Extendable Tail/Long Tail 48", Inside Rail - 3/4 Trough

U5-XI-174-10

TANDEM AXLE--60k--174 MODELS--Extendable Tail/Long Tail 48", Inside Rail - 3/4 Trough

UM-IO-194

TANDEM AXLE--60k--194 MODELS--Michigan 9' Spread Lift Axle--Inside & Outside Rollers, Inside/Outside Rail

UM-SI-194

TANDEM AXLE--60k--194 MODELS--Michigan 9' Spread Lift Axle--Inside & Outside Rollers, Narrow Inside/Outside Rail 35" & Deadlift

UC-IO-22

TANDEM AXLE--60k--174 MODELS--Canada Unit--12" Main Frame, Inside/Outside Rail w/ Dock Push Off--Telescopic Winch Cylinder - Rod Type Lift Cylinders

UC-IO-24

TANDEM AXLE--60k--194 MODELS--Canada Unit--12" Main Frame, Inside/Outside Rail w/ Dock Push Off--Telescopic Winch Cylinder - Telescopic Lift Cylinders

U75-IO-174

TANDEM AXLE--75k--174 MODELS--Inside/Outside Rail

U75-IO-194

TANDEM AXLE--75k--194 MODELS--Inside/Outside Rail

UH-IO-174

HEAVY DUTY--TANDEM AXLE--75k--174 MODELS--Inside/Outside Rail - Inside Rollers

UH-IO-194

HEAVY DUTY--TANDEM AXLE--75k--194 MODELS--Inside/Outside Rail - Inside Rollers

UH-LTIO-176

HEAVY DUTY--TANDEM AXLE--75k--176 MODELS--Long Box, Inside/Outside Rail--13k Lift Axle & 20k Rear Mounted Lift Axles *Required*

UH-LTIO-195

HEAVY DUTY--TANDEM AXLE--75k--195 MODELS--Long Box, Inside/Outside Rail--13k Lift Axle & 20k Rear Mounted Lift Axles *Required*

UH-L2TIO-195

HEAVY DUTY--TANDEM AXLE--75k--195 MODELS--Long Box, Inside/Outside Rail--(2) 13k Lift Axles & 20k Rear Mounted Lift Axle *Required*

UT-IO-174

TANDEM AXLE--60k--174 MODELS--Inside/Outside Rail-Telescopic Lift Cylinders

UT-IO-194

TANDEM AXLE--60k--194 MODELS--Inside/Outside Rail-Telescopic Lift Cylinders

Applications

Galbreath Inside/Outside rail hoists are designed for fleets with both types of containers.
