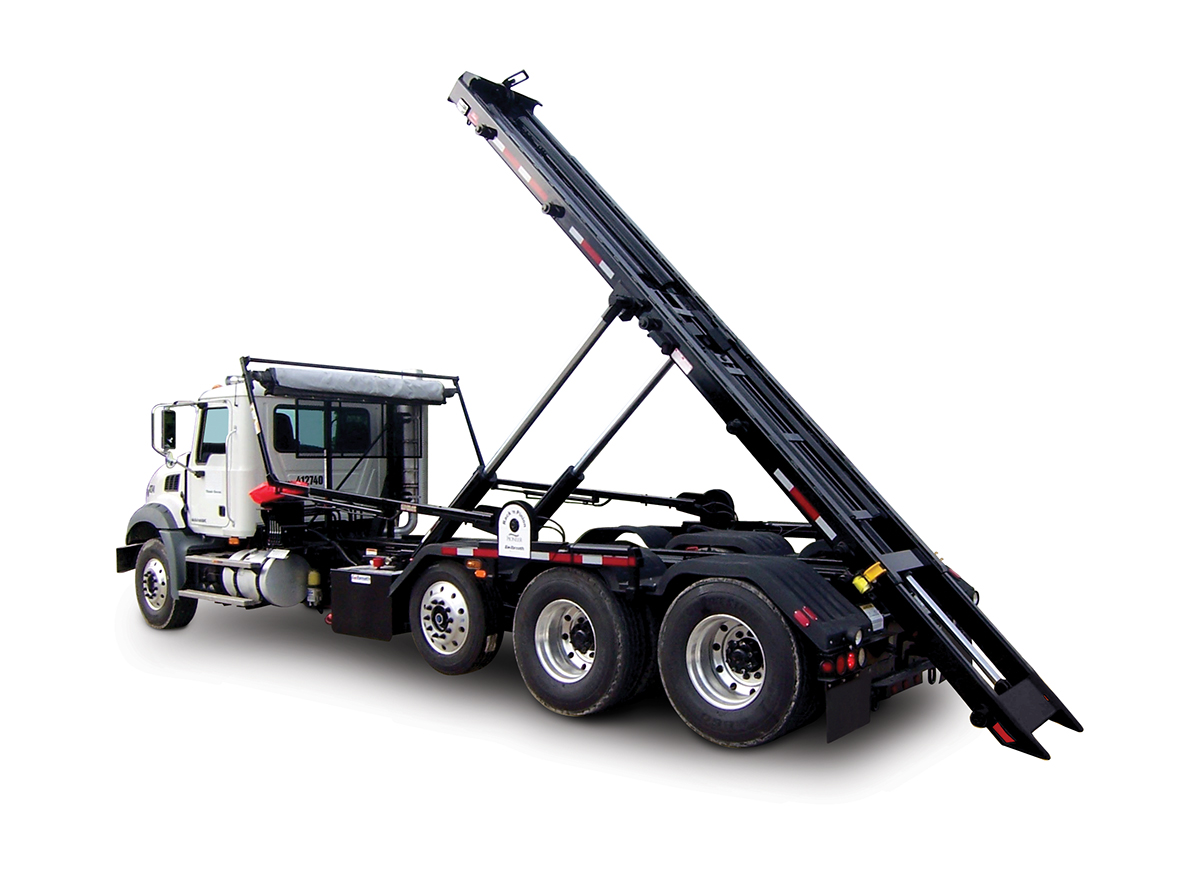

Galbreath's Extendable Tail (EX & OX) cable hoists are ideal for areas with clearance issues that require a low loading heights.  (EX) hoist don't require ICC bumpers with their fully retracted tails.

Features
  • Dual Outboard Mounted Lift Cylinders (all U-series & AH-series models)
  • Dual In-board mounted lift cylinders (all AF/AFX models)
  • Pintle hitch adaptable rear apron
  • Split light bumpers
  • Heavy duty rear hinge
  • Backup alarm
  • Hoist maintenance props
  • Tarper / valve mounting platform
  • Behind the cab oil reservoir
  • Return oil filter / 3 microns
  • Stationary rear hold down
  • T1 Steel Wear Strips on top of rails
  • Hydraulic tube plumbing in frame
  • LED – DOT stop, turn and side marker lights
  • Hoist up alarm with signal light
  • Single cylinder reeving system
  • Mount plates and mounting bolts
  • Hydraulic hose plumbing at control valve
  • Direct mount pump
  • Cable end holder
  • Sealed wiring harness
  • Manual control valve levers (2 up to 7 when applicable)
  • Inside air controls
  • Air assist auto folding ICC bumper (ICC bumpers are not required on all models)
Options
  • Pioneer® tarping systems
  • Pintle hooks and towing applications
  • Auxiliary hydraulic hook ups and wet kits
  • Outside rail skid plates
  • Outboard supported side rollers (standard on 75k lb. and AH-series models)
  • Toolboxes
  • Fenders
  • Rear window screen protection
  • Lift axles
  • Auxiliary container stops and rear hold downs
  • Various cable ends
  • Safety and additional LED work lights
  • Speed & RPM limiting parameters
  • Scale systems
  • Backup camera systems
  • Pumps and PTO's
Models
U2-EX-119

SINGLE AXLE--25k--119 MODELS--Extendable Tail 60", Outside Rail

U2-EX-138

SINGLE AXLE--25k--138 MODELS--Extendable Tail 60", Outside Rail

U3-EX-156

SINGLE AXLE--30k--156 MODELS--Extendable Tail 60", Outside Rail

U3-EX-178

SINGLE AXLE--30k--178 MODELS--Extendable Tail 60", Outside Rail

U3-OX-178

SINGLE AXLE--30k--178 MODELS--Extendable Tail/Long Tail 48", Outside Rail

U4-EX-156

TANDEM AXLE--40k--156 MODELS--Extendable Tail 80", Outside Rail

U4-EX-174

TANDEM AXLE--40k--174 MODELS--Extendable Tail 80", Outside Rail

U5-EX-156

TANDEM AXLE--60k--156 MODELS--Extendable Tail 80", Outside Rail

U5-EX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 80", Outside Rail

U5-EX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail 80", Outside Rail

U5-EX/HH-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 80", Narrow Outside Rail 35", Combo Front Stops

U5-EX/HH-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail 80", Narrow Outside Rail 35", Combo Front Stops

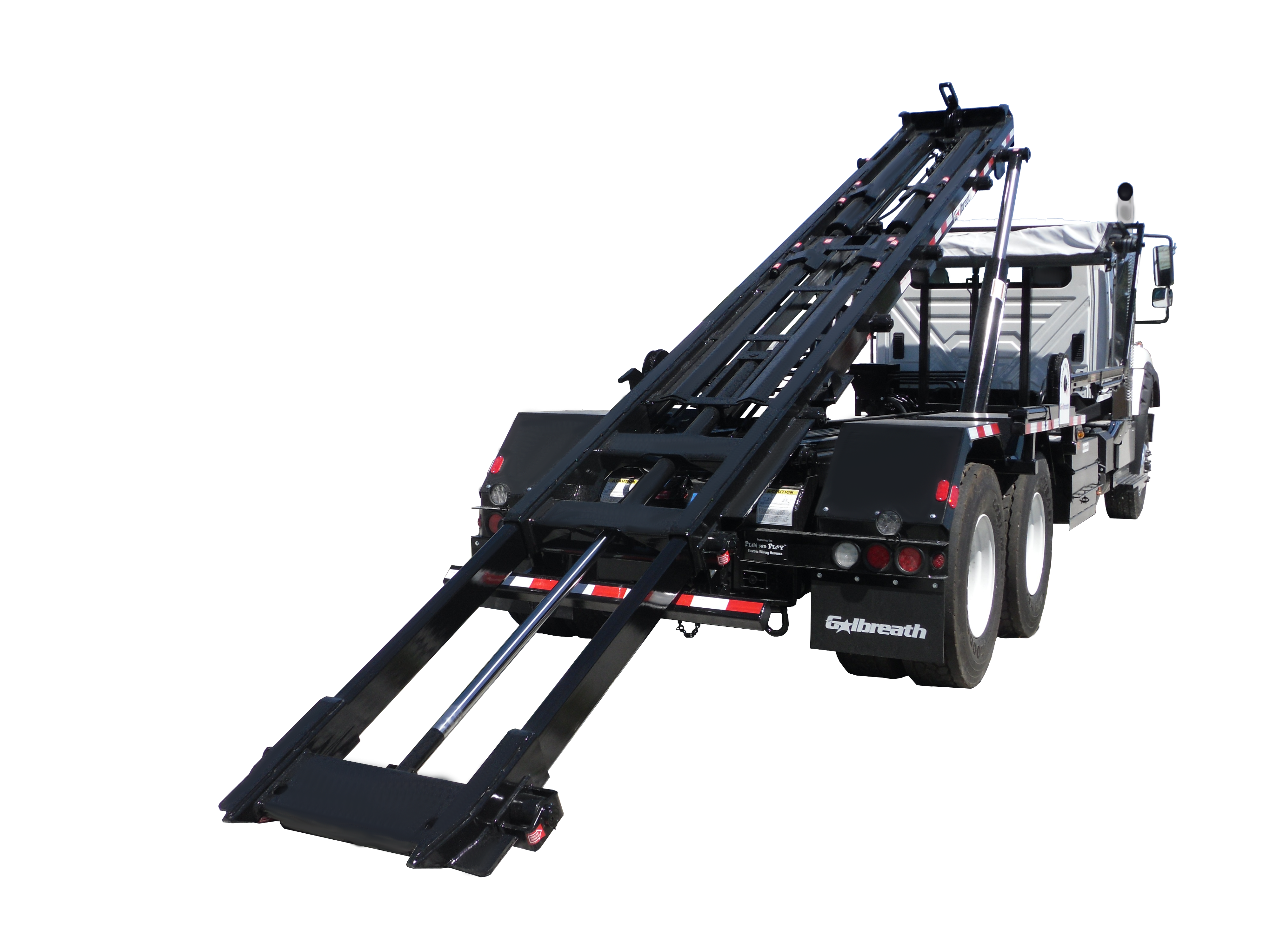

U5-OX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail/Long Tail 48", Outside Rail

U5-OX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail/Long Tail 48", Outside Rail

U5-EX-174-10

TANDEM AXLE--60k--174 MODELS--10" Main Frame - Extendable Tail 80", Outside Rail

U5-EX-194-10

TANDEM AXLE--60k--194 MODELS--10" Main Frame, Extendable Tail 80", Outside Rail

U5-OX-174-10

TANDEM AXLE--60k--174 MODELS--10" Main Frame, Extendable Tail/Long Tail 48", Outside Rail

U5-OX-194-10

TANDEM AXLE--60k--194 MODELS--10" Main Frame - Extendable Tail/Long Tail 48", Outside Rail

UT-EX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 80", Outside Rail

UT-EX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail 80", Outside Rail-Telescopic Lift Cylinders

UT-EX/HH-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 80", Narrow Outside Rail 35", Combo Front Stops -Telescopic Lift Cylinders

UT-OX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail/Long Tail 48", Outside Rail--Telescopic Lift Cylinders

UT-OX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail/Long Tail 48", Outside Rail--Telescopic Lift Cylinders

UM-EX-194

TANDEM AXLE--60k--194 MODELS--Michigan 9' Spread Lift Axle--Extendable Tail 80", Outside Rollers, Outside Rail

UM-OX-194

TANDEM AXLE--60k--194 MODELS--Michigan 9' Spread Lift Axle--Extendable Tail/Long Tail 48", Outside Rail

U75-EX-174

TANDEM AXLE--75k--174 MODELS--Extendable Tail 80", Outside Rail

U75-EX-194

TANDEM AXLE--75k--194 MODELS--Extendable Tail 80", Outside Rail

U75-OX-174

TANDEM AXLE--75k--194 MODELS--Extendable Tail/Long Tail 48", Outside Rail

U75-OX-194

TANDEM AXLE--75k--194 MODELS--Extendable Tail/Long Tail 48", Outside Rail

U75T-EX-174

TANDEM AXLE--75k--174 MODELS--Extendable Tail 80", Outside Rail--Telescopic Lift Cylinders

U75T-EX-194

TANDEM AXLE--75k--194 MODELS--Extendable Tail 80", Outside Rail--Telescopic Lift Cylinders

AH60-EX-08-22

TANDEM AXLE--60k--174 MODELS--8" Main Frame; 2" Sub-Frame--Extendable Tail 80", Outside Rail

AH60-EX-08-24

TANDEM AXLE--60k--194 MODELS--8" Main Frame; 2" Sub-Frame--Extendable Tail 80", Outside Rail

AH60-EX-10-22

TANDEM AXLE--60k--174 MODELS--10" Main Frame; No Sub-Frame--Extendable Tail 80", Outside Rail

AH60-EX-10-24

TANDEM AXLE--60k--194 MODELS--10" Main Frame; No Sub-Frame--Extendable Tail 80", Outside Rail

AH60T-EX-08-22

TANDEM AXLE--60k--174 MODELS--8" Main Frame; 2" Sub-Frame--Extendable Tail 80", Outside Rail - Telescopic Lift Cylinders

AH60T-EX-10-22

TANDEM AXLE--60k--174 MODELS--10" Main Frame; No Sub-Frame--Extendable Tail 80", Outside Rail - Telescopic Lift Cylinders

AH75-EX-08-22

TANDEM AXLE--75k--174 MODELS--8" Main Frame; 2" Sub-Frame--Extendable Tail 80", Outside Rail

AH75-EX-08-24

TANDEM AXLE--75k--194 MODELS--8" Main Frame; 2" Sub-Frame--Extendable Tail 80", Outside Rail

AH75-EX-10-22

TANDEM AXLE--75k--174 MODELS--10" Main Frame; No Sub-Frame--Extendable Tail 80", Outside Rail

AH75-EX-10-24

TANDEM AXLE--75k--194 MODELS--10" Main Frame; No Sub-Frame--Extendable Tail 80", Outside Rail

AH75-OX-08-22

TANDEM AXLE--75k--174 MODELS--8" Main Frame; 2" Sub-Frame--Extendable Tail/Long Tail 48", Outside Rail

AH75-OX-08-24

TANDEM AXLE--75k--194 MODELS--8" Main Frame; 2" Sub-Frame--Extendable Tail/Long Tail 48", Outside Rail

AH75-OX-10-22

TANDEM AXLE--75k--174 MODELS--10" Main Frame; No Sub-Frame--Extendable Tail/Long Tail 48", Outside Rail

AH75-OX-10-24

TANDEM AXLE--75k--194 MODELS--10" Main Frame; No Sub-Frame--Extendable Tail/Long Tail 48", Outside Rail

AH75T-EX-08-22

TANDEM AXLE--75k--174 MODELS--8" Main Frame; 2" Sub-Frame--Extendable Tail 80", Outside Rail - Telescopic Lift Cylinders

AF-EX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 60", Outside Rail

AF-EX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail 60", Outside Rail

AF-OX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail/Long Tail 60", Outside Rail

AF-OX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail/Long Tail 60", Outside Rail

AFWC-OX-194

TANDEM AXLE--60k--194 MODELS--West Coast--Extendable Tail/Long Tail 60", (3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5" OD Rail

AFX-EX-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail 60", Outside Rail

AFX-EX-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail 60", Outside Rail

AFX-OX-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail/Long Tail 60", Outside Rail

AFX-OX-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail/Long Tail 60", Outside Rail

AF75-EX-194

TANDEM AXLE--75k--194 MODELS--Extendable Tail 60", Outside Rail

AF75-EX-174

TANDEM AXLE--75k--174 MODELS--Extendable Tail 60", Outside Rail

Applications

Lower loading angle and overall clearance makes the EX and OX models ideal for loading containers inside buildings. Use with outside rail containers only.
