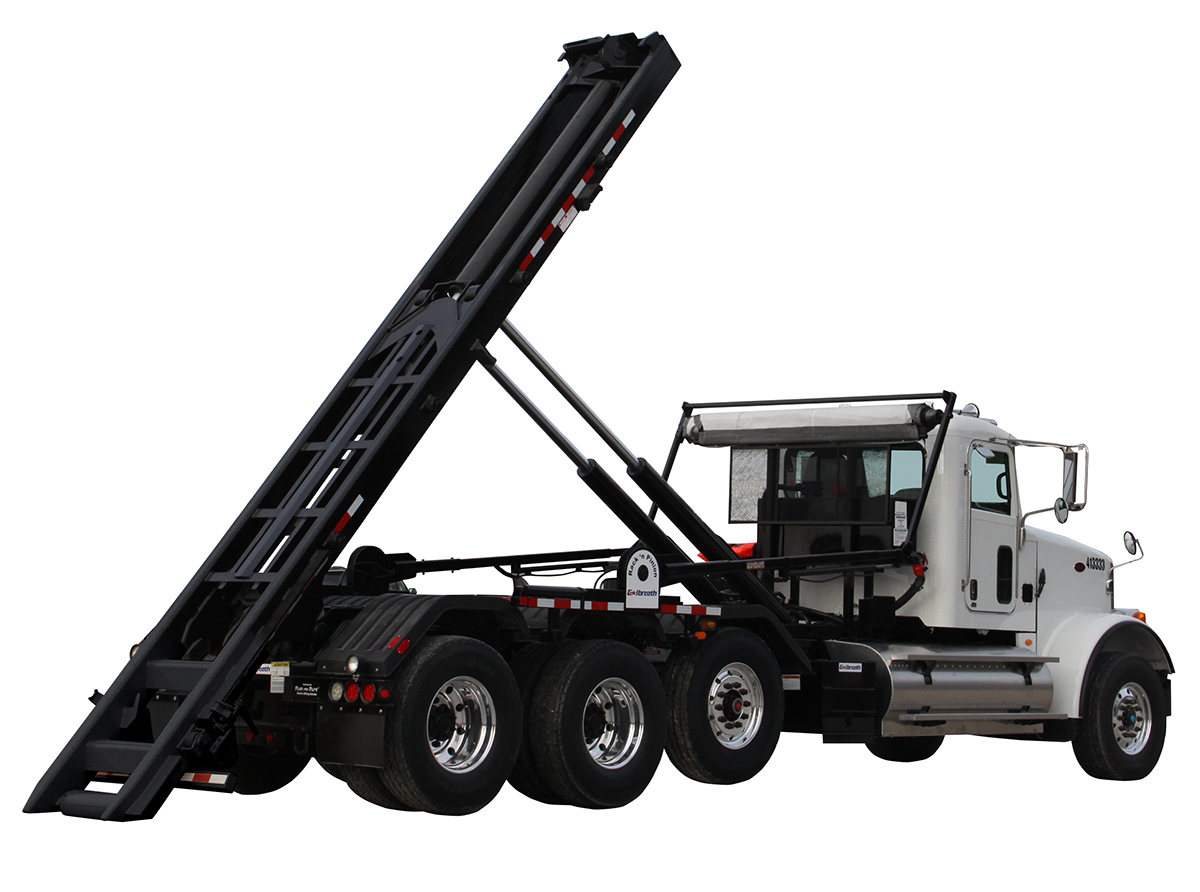

The Galbreath Above Frame (AF) cable hoists are versatile enough to work with any truck chassis, suspensions, exhaust systems and fuel tanks. The AF hoist is ideal for use with alternative fuel chassis such as CNG and LNG. Plus, the single-cylinder reeving system improves load and unload speeds by up to 25%.

Features
  • Dual In-board mounted lift cylinders (all AF/AFX models)
  • Pintle hitch adaptable rear apron
  • Split light bumpers
  • Heavy duty rear hinge
  • Backup alarm
  • Hoist maintenance props
  • Tarper / valve mounting platform
  • Behind the cab oil reservoir
  • Return oil filter / 3 microns
  • Stationary rear hold down
  • Hoist up alarm with signal light
  • Hydraulic tube plumbing in frame
  • LED – DOT stop, turn and side marker lights
  • Air assist auto folding ICC bumper (ICC bumpers are not required on all models)
  • Single cylinder reeving system
  • Mount plates and mounting bolts
  • Hydraulic hose plumbing at control valve
  • Direct mount pump
  • Cable end holder
  • Sealed wiring harness
  • Manual control valve levers (2 up to 7 when applicable)
  • Inside air controls
Options
  • Pioneer® tarping systems
  • Pintle hooks and towing applications
  • Auxiliary hydraulic hook ups and wet kits
  • Outside rail skid plates
  • Outboard supported side rollers (standard on 75k lb. models)
  • Toolboxes
  • Fenders
  • Rear window screen protection
  • Lift axles
  • Auxiliary container stops and rear hold downs
  • Various cable ends
  • Safety and additional LED work lights
  • Speed & RPM limiting parameters
  • Scale systems
  • Backup camera systems
  • Pumps and PTO's
Models
AF-OR-174

TANDEM AXLE--60k--174 MODELS--Outside Rollers, Outside Rail

AF-OR-194

TANDEM AXLE--60k--194 MODELS--Outside Rollers, Outside Rail

AFWC-OR-174

TANDEM AXLE--60k--174 MODELS--West Coast--(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5" OD Rail

AFWC-OR-194

TANDEM AXLE--60k--194 MODELS--West Coast--(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5" OD Rail

AFWC-OX-194

TANDEM AXLE--60k--194 MODELS--West Coast--Extendable Tail/Long Tail 60", (3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5" OD Rail

AF-EX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 60", Outside Rail

AF-EX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail 60", Outside Rail

AF-OX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail/Long Tail 60", Outside Rail

AF-OX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail/Long Tail 60", Outside Rail

AF-IO-174

TANDEM AXLE--60k--174 MODELS--Inside/Outside Rail

AF-IO-194

TANDEM AXLE--60k--194 MODELS--Inside/Outside Rail

AF-IX-174

TANDEM AXLE--60k--174 MODELS--Extendable Tail 60", Inside/Outside Rail

AF-IX-194

TANDEM AXLE--60k--194 MODELS--Extendable Tail 60", Inside/Outside Rail

AF-HH-174

TANDEM AXLE--50k--174 MODELS--Dead Lift, Narrow Outside Rail 35"

AF-HH-194

TANDEM AXLE--50k--194 MODELS--Dead Lift, Narrow Outside Rail 35"

AF-EH-174

TANDEM AXLE--50k--174 MODELS--Extendable Tail 60", Deadlift, Narrow Outside Rail 35"

AF-SI-174

TANDEM AXLE--60k--174 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AF-SI-186

TANDEM AXLE--60k--186 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AF-SI-194

TANDEM AXLE--60k--194 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AFCA-TM-22

TANDEM AXLE--60k--174 MODELS--California Unit--10" Trough Mount

AFCA-TM-24

TANDEM AXLE--60k--194 MODELS--California Unit--10" Trough Mount

AFWC-TM-174

TANDEM AXLE--60k--174 MODELS--West Coast--10" Trough Mount w/ 34.5" OD Rail

AFCD-OR-22

TANDEM AXLE--50k--174 MODELS--Canada Mount, Outside Rail w/ Dock Push off Option - No Outside Rollers

AFCD-OR-24

TANDEM AXLE--40k--194 MODELS--Canada Mount, Outside Rail w/ Dock Push off Option - No Outside Rollers

AFX-OR-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Outside Rollers, Outside Rail

AFX-OR-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Outside Rollers, Outside Rail

AFX-IO-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Inside/Outside Rail

AFX-IO-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Inside/Outside Rail

AFX-IX-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail 60", Inside/Outside Rail

AFX-IX-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail 60", Inside/Outside Rail

AFX-IOX-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail/Long 55", Inside/Outside Rail

AFX-EX-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail 60", Outside Rail

AFX-EX-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail 60", Outside Rail

AFX-OX-174

TANDEM AXLE--60k--174 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail/Long Tail 60", Outside Rail

AFX-OX-194

TANDEM AXLE--60k--194 MODELS--Recessed Vertical Sheave, Extra Top Coverage--Extendable Tail/Long Tail 60", Outside Rail

AFXC-OR-194

TANDEM AXLE--60k--194 MODELS--Canada Unit-Recessed Vertical Sheave, Extra Top Coverage--Outside Rollers, Outside Rail

AFXC-IO-174

TANDEM AXLE--60k--174 MODELS--Canada Unit-Recessed Vertical Sheave, Extra Top Coverage--Outside Rollers, Inside/Outside Rail

AF75-OR-194

TANDEM AXLE--75k--194 MODELS--Outside Rollers, Outside Rail

AF75-IO-194

TANDEM AXLE--75k--194 MODELS--Inside/Outside Rail

AF75-EX-194

TANDEM AXLE--75k--194 MODELS--Extendable Tail 60", Outside Rail

AF75-OR-174

TANDEM AXLE--75k--174 MODELS--Outside Rollers, Outside Rail

AF75-IO-174

TANDEM AXLE--75k--174 MODELS--Inside/Outside Rail

AF75-IX-174

TANDEM AXLE--75k--174 MODELS--Extendable Tail 60", Inside/Outside Rail

AF75-SI-174

TANDEM AXLE--75k--174 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AF75-EX-174

TANDEM AXLE--75k--174 MODELS--Extendable Tail 60", Outside Rail

AF75-OX-174

TANDEM AXLE--75k--174 MODELS--Extendable Tail/Long Tail 60", Outside Rail

Applications

The Above Frame (AF) hoist is ideal for alternative fuel chassis or any application that requires additional space alongside the truck chassis.
