Container Delivery Trailers are designed to haul empty or loaded FEL/REL type of containers.  The ability to use a CDU truck with these trailers is ideal for making the most out of every route that needs run.  Whether it be a new customer's site or rental location, get more done in one trip rather than spinning your wheels running your profit generating piece of equipment to do the same thing in multiple trips.  Save money, save time and generate more revenue by spotting cans or running routes with the ability to do more with less.

Features

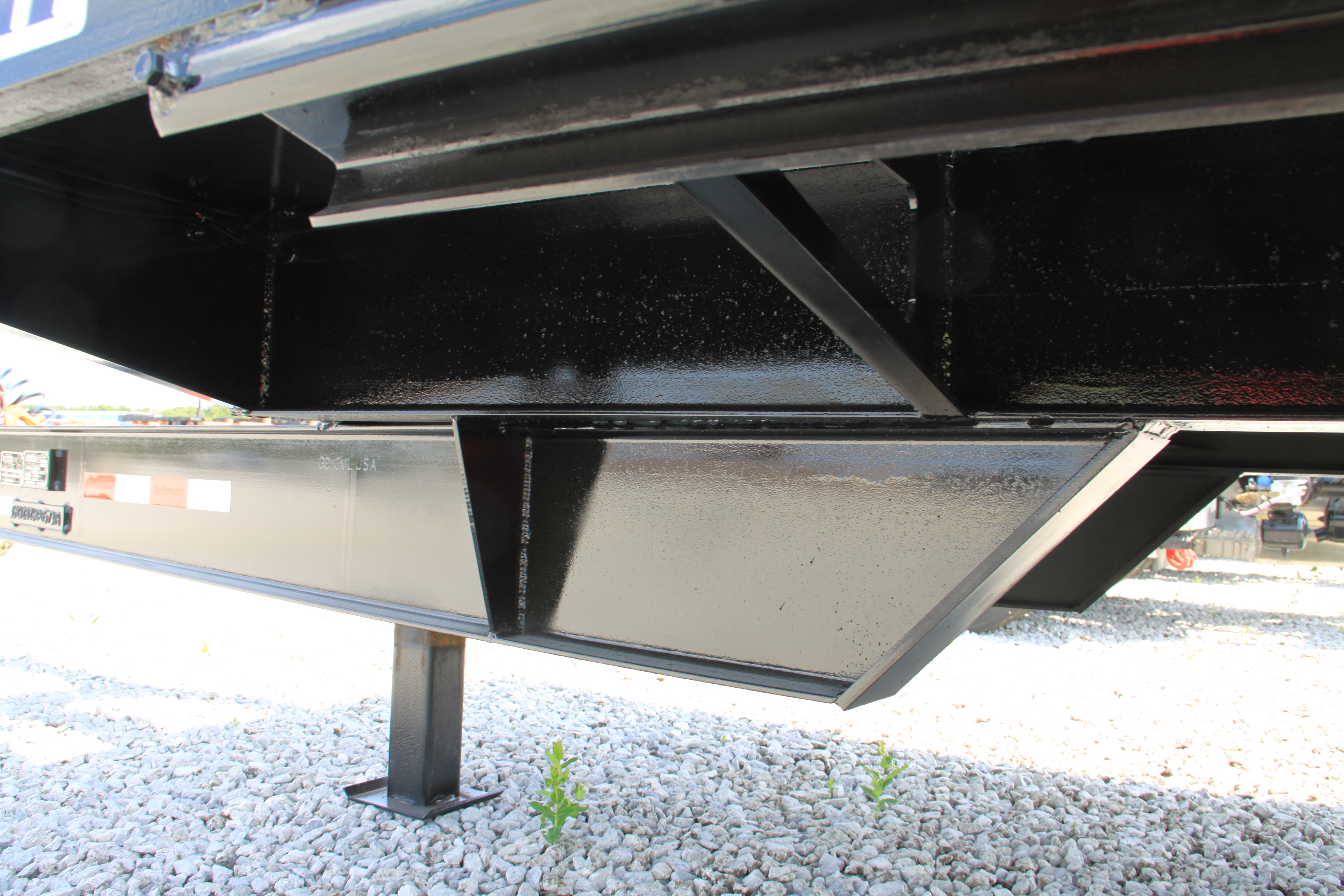

  • Main Frame is wide flange 10" I-Beam & Outer Frame Constructed of (2) 5" Channels
  • Trailer Deck - (7-Gauge) Tread Plate
  • (4 or 5) sets of Sliding Nylon Ratchet Hold Downs w/ Hooks 4" x 30' straps
  • Constructed of steel and equipped with energy absorbing spring steel
  • 10" I-Beam with Swivel Pintle Lunette w/ Safety chains
  • Single Leg Manual Crank, 10,000 lb. Lift Capacity Landing Gear (15,000 lb. static load capacity)
  • 20k lb. Suspension (10 - slip springs) - 10,000 lbs. Capacity Axles
  • (8) - 235/80R 16 Tubeless Tires (80 psi max) - mounted on 7" x 16" Steel Rims
  • ABS Air Brake Actuating System
  • LED lighting:  Perimeter/Marker, Running, Stop, Turn and Mid-Body
  • 3/8" DOT Service & Emergency Air Lines w/ Glad Hands & (7-Wire) Electrical Trailer Plug
  • (2) Part Epoxy Primer and Paint - Black automotive finish standard
  • Galbreath products are designed & manufactured in the US and come with a 1 year limited warranty
Options
  • Add additional ratchet hold downs (fixed or sliding)
  • Upgrade to spring loaded drop leg landing gear (single leg)
Models
CDT-4

CONTAINER DELIVERY TRAILER--20k lb. capacity - (2) Axle Slip Spring Ride Suspension - (4) Bay Trailer - 27' 9" Deck Length/37" 4" Overall Length - 213450

CDT-5

CONTAINER DELIVERY TRAILER--20k lb. capacity - (2) Axle Slip Spring Ride Suspension - (5) Bay Trailer - 34' 6" Deck Length/44' 1" Overall Length - 217419

Applications

Ideal for transporting new REL/FEL containers to new contract sites or picking up multple loaded containers after an event.
