Built for efficient container delivery, pickup, and yard management, the Galbreath CH8000 Container Handler delivers the versatility and durability waste haulers need every day. Designed to handle front-load containers from 2 to 10 yards and rear-load containers from 2 to 6 yards, the CH8000 offers up to 8,000 lbs. of lifting and rotating capacity for dependable performance in demanding operations. Featuring rugged construction, LED lighting, secure retainer straps, inside air controls, and an available 360° rotator for container dumping into open-top containers, the CH8000 helps operators improve productivity while maintaining safety and control. Available in both rotator and non-rotator configurations, it's a flexible solution for fleets looking to maximize efficiency on route or in the yard.
Container Handling
- Handles front-load containers from 2 to 10 yards.
- Handles rear-load containers from 2 to 6 yards.
- Available as:
- CH8NR (Non-Rotator)
- CH8 (With Rotator)
Capacity
- 8,000 lb lifting capacity.
- 4,000 lb hauling capacity.
- 8,000 lb rotating capacity (rotator model).
Rotator & Securement
- 360° Slew Drive Rotator for emptying containers.
- Rotating arms can dump into a 30-yard open-top container.
- Retainer straps for securing containers during transport.
- Ratchet/Hold-Down System with retainer straps.

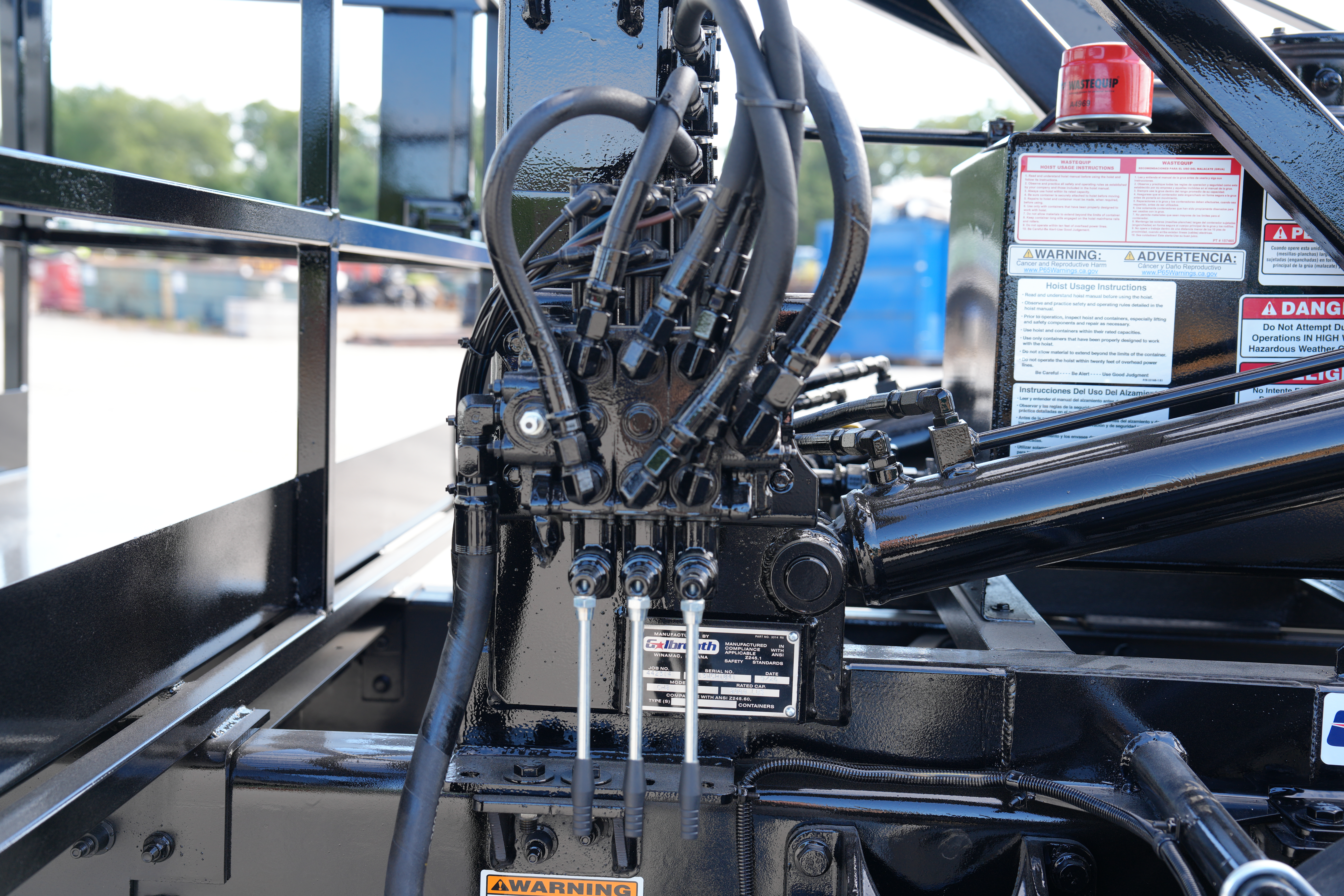

Controls & Hydraulics
- Inside air controls.
- Air controls configured as:
- 2-spool standard (non-rotator)
- 3-spool standard (rotator)
- Direct-mount hydraulic pump.
- Inside-frame mounted oil reservoir.
Safety
- Backup alarm.
- Hoist-up alarm with signal light.
- Lighting & Appearance
LED lighting.
- Bumper with recessed LED lighting.
- Poly fenders with standard LED light bumper.
- Black two-part epoxy paint finish.
Chassis & Structure
- 5" x 3" frame assembly.
- Pintle or Reese hitch-ready apron.
