X-Series Roll-Off Cable Hoists

Request a Quote Find a Dealer

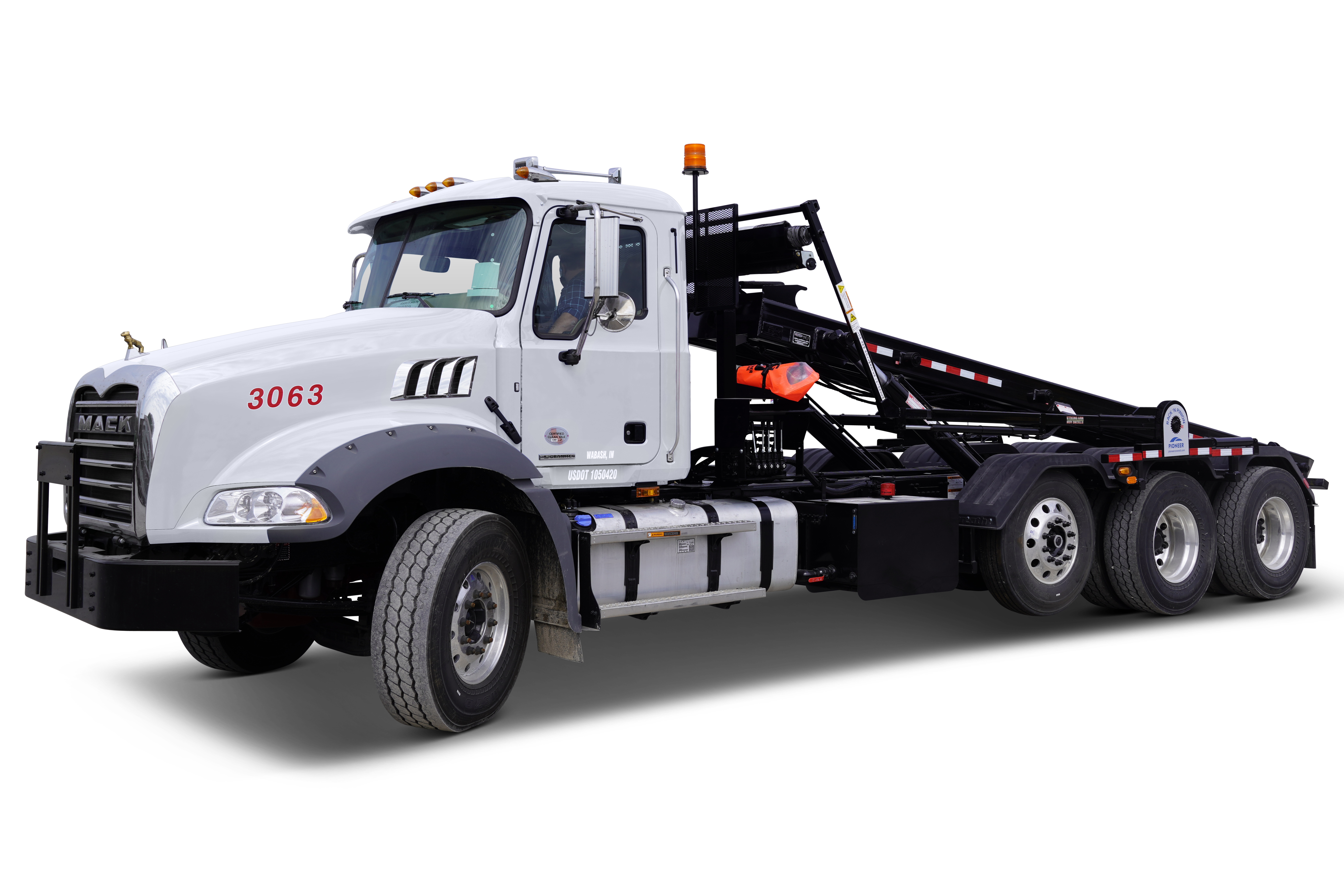

Galbreath’s new X6 hoists are built to last with heavy-duty components. The X6 cable hoist combines the speed of an Above Frame hoist with the reliability and durability of a traditional U Series cable hoist.  The X6 hoist has a single winch cylinder, as compared to 2 in a traditional U Series cable hoist, and is lightweight and maneuverable without losing its renowned durability.

Features
  • Inside air controls mounted in ergonomic power tower featuring Plug And PlayTM wiring

  • Back-up alarm & hoist up alarm with signal light in cab

  • Secondary manual controls mounted outside on driver’s side

  • Outside frame rail stationary rear container hold downs

  • Steel hydraulic tank side mounted with 3 micron filtration, dual sight/temp. gauge & air breather

  • 10” Grease grooved cable sheaves

  • Heavy-duty cast ductile iron rear hinge

  • Automatic spring loaded pass through front container lock

  • 4” O.D. Side rollers with bronze bearings

  • Auto fold air assist ICC bumper

  • Pintle adaptable rear apron & bumper assembly with DOT approved LED lighting

  • Mid body LED turn signal lights

  • Dual hoist maintenance / safety props

  • Warranty: Limited lifetime on frame & 2-year limited on hydraulic system

  • Customized engineering layouts ensure the best fit for each customer

Options
  • Pioneer® tarping systems

  • Tarp and control valve mounting platform

  • Steel, aluminum or poly fenders

  • Toolbox styles and sizes (poly, steel, aluminum)

  • Rear window screen protection

  • Lift axles (steer and non-steer)

  • Reverse mount lift cylinders

  • Auxiliary hydraulic hook ups and wet kits

  • Pintle hooks and towing applications

  • Auxiliary containers stops and hold downs

  • T1 steel wear strips for main frame rails

  • Side mounted skid plates

  • Various cable ends

  • Safety and additional LED work lighting

  • Speed limiting parameters for hoist up and ground speed

  • Scale systems

  • Back-up camera systems

Models
X6-OR-174

Recommended Container Size 1: 18' - 22'

Rated Hoist Capacity 260,000 lbs.

A – Height Above Truck Frame 3,5: 163 1/2"

B – Back of Cab (BOC) to Hoist 4: 6”

C – Axle Spread: 50" - 55"

D – Raised Dump Angle 3,5: 47°

E – Top of Truck Frame to Ground 3,5: 44"

F – Tire OD to OD: 96" Max

G – Cab to Tuunnion (CT)4174"

H – Hoist Length: 279 1/4"

H1 – Hoist Length w/ Tail Extended: NA

I – After Frame (add 2" for air ride): 23"

Lift Cylinders: 6" x 4" x 72" DA

Winch Cylinders: 7" x 4" x 80 DA

Tail Cylinder (extendable tail): NA

Approximate weight with standard features (ship out weight used; unmounted): 5,328 LBS.



* Containers that overhang the rear of the bumper (Fixed or Folding ICC) by more than 24” will require the appropriate flagging to meet DOT requirements *

1) When recommending container lengths, weight distribution, fender interference and overhang are factors.  Please consult your local ordinances when determining the model of hoist needed to suit your container needs.
2) Factory tested with recommended container length and water level load.
3) Frame Height = top of truck chassis frame to ground. Using 22.5” tires only. For larger tires, consult engineering for clearance.
4) This distance allows for a behind the cab (BTC) oil reservoir, tarper platform and or room to add a tarper. This distance is already included in with the CT (G) measurement. Subtract 12” from CT if no tarper platform is needed. Add 4” to the CT if adding a Roll Rite Tarp system.
5) Request additional tail length for spring suspensions higher than 45”; see chart 1 for reference.

X6-OR-194

Recommended Container Size 1: 20' - 24'

Rated Hoist Capacity 260,000 lbs.

A – Height Above Truck Frame 3,5: 178 3/16”

B – Back of Cab (BOC) to Hoist 4: 6”

C – Axle Spread: 50" - 55"

D – Raised Dump Angle 3,5: 47°

E – Top of Truck Frame to Ground 3,5: 44"

F – Tire OD to OD: 96" Max

G – Cab to Tuunnion (CT)4194"

H – Hoist Length: 299 1/4”

H1 – Hoist Length w/ Tail Extended: NA

I – After Frame (add 2" for air ride): 23"

Lift Cylinders: 6" x 4" x 72" DA

Winch Cylinders: 7" x 4" x 90 DA

Tail Cylinder (extendable tail): NA

Approximate weight with standard features (ship out weight used; unmounted): TBD



* Containers that overhang the rear of the bumper (Fixed or Folding ICC) by more than 24” will require the appropriate flagging to meet DOT requirements *

1) When recommending container lengths, weight distribution, fender interference and overhang are factors.  Please consult your local ordinances when determining the model of hoist needed to suit your container needs.
2) Factory tested with recommended container length and water level load.
3) Frame Height = top of truck chassis frame to ground. Using 22.5” tires only. For larger tires, consult engineering for clearance.
4) This distance allows for a behind the cab (BTC) oil reservoir, tarper platform and or room to add a tarper. This distance is already included in with the CT (G) measurement. Subtract 12” from CT if no tarper platform is needed. Add 4” to the CT if adding a Roll Rite Tarp system.
5) Request additional tail length for spring suspensions higher than 45”; see chart 1 for reference.

X6T-OR-174

Recommended Container Size 1: 18' - 22'

Rated Hoist Capacity 260,000 lbs.

A – Height Above Truck Frame 3,5: 163 1/2"

B – Back of Cab (BOC) to Hoist 4: 6”

C – Axle Spread: 50" - 55"

D – Raised Dump Angle 3,5: 47°

E – Top of Truck Frame to Ground 3,5: 44"

F – Tire OD to OD: 96" Max

G – Cab to Tuunnion (CT)4174"

H – Hoist Length: 279 1/4"

H1 – Hoist Length w/ Tail Extended: NA

I – After Frame (add 2" for air ride): 23"

Lift Cylinders: 6-5-4" x 118" DAT

Winch Cylinders: 7" x 4" x 80 DA

Tail Cylinder (extendable tail): NA

Approximate weight with standard features (ship out weight used; unmounted): TBD



* Containers that overhang the rear of the bumper (Fixed or Folding ICC) by more than 24” will require the appropriate flagging to meet DOT requirements *

1) When recommending container lengths, weight distribution, fender interference and overhang are factors.  Please consult your local ordinances when determining the model of hoist needed to suit your container needs.
2) Factory tested with recommended container length and water level load.
3) Frame Height = top of truck chassis frame to ground. Using 22.5” tires only. For larger tires, consult engineering for clearance.
4) This distance allows for a behind the cab (BTC) oil reservoir, tarper platform and or room to add a tarper. This distance is already included in with the CT (G) measurement. Subtract 12” from CT if no tarper platform is needed. Add 4” to the CT if adding a Roll Rite Tarp system.
5) Request additional tail length for spring suspensions higher than 45”; see chart 1 for reference.

X6T-OR-194

Recommended Container Size 1: 20' - 24'

Rated Hoist Capacity 260,000 lbs.

A – Height Above Truck Frame 3,5: 178 3/16”

B – Back of Cab (BOC) to Hoist 4: 6”

C – Axle Spread: 50" - 55"

D – Raised Dump Angle 3,5: 47°

E – Top of Truck Frame to Ground 3,5: 44"

F – Tire OD to OD: 96" Max

G – Cab to Tuunnion (CT)4194"

H – Hoist Length: 299 1/4”

H1 – Hoist Length w/ Tail Extended: NA

I – After Frame (add 2" for air ride): 23"

Lift Cylinders: 6-5-4" x 118" DAT

Winch Cylinders: 7" x 4" x 90 DA

Tail Cylinder (extendable tail): NA

Approximate weight with standard features (ship out weight used; unmounted): TBD



* Containers that overhang the rear of the bumper (Fixed or Folding ICC) by more than 24” will require the appropriate flagging to meet DOT requirements *

1) When recommending container lengths, weight distribution, fender interference and overhang are factors.  Please consult your local ordinances when determining the model of hoist needed to suit your container needs.
2) Factory tested with recommended container length and water level load.
3) Frame Height = top of truck chassis frame to ground. Using 22.5” tires only. For larger tires, consult engineering for clearance.
4) This distance allows for a behind the cab (BTC) oil reservoir, tarper platform and or room to add a tarper. This distance is already included in with the CT (G) measurement. Subtract 12” from CT if no tarper platform is needed. Add 4” to the CT if adding a Roll Rite Tarp system.
5) Request additional tail length for spring suspensions higher than 45”; see chart 1 for reference.
