Deadlift hoists are ideal for use in metropolitan areas where space is at a premium. The Galbreath HH series require no ICC bumper and accommodates shorter containers.

Features
  • Dual Outboard Mounted Lift Cylinders (all U-series models)
  • Dual In-board mounted lift cylinders (all AF/AFX models)
  • Pintle hitch adaptable rear apron
  • Split light bumpers
  • Heavy duty rear hinge
  • Backup alarm
  • Hoist maintenance props
  • Tarper / valve mounting platform
  • Behind the cab oil reservoir
  • Return oil filter / 3 microns
  • Stationary rear hold down
  • Hydraulic tube plumbing in frame
  • LED – DOT stop, turn and side marker lights
  • Hoist up alarm with signal light
  • Single cylinder reeving system
  • Mount plates and mounting bolts
  • Hydraulic hose plumbing at control valve
  • Direct mount pump
  • Cable end holder
  • Sealed wiring harness
  • Manual control valve levers (2 up to 7 when applicable)
  • Inside air controls
Options
  • Pioneer® tarping systems
  • Pintle hooks and towing applications
  • Auxiliary hydraulic hook ups and wet kits
  • Outside rail skid plates
  • Outboard supported side rollers
  • Toolboxes
  • Fenders
  • Rear window screen protection
  • Lift axles
  • Auxiliary container stops and rear hold downs
  • Various cable ends
  • Safety and additional LED work lights
  • Speed & RPM limiting parameters
  • Scale systems
  • Backup camera systems
  • Pumps and PTO's
Models
U3-HH-138

SINGLE AXLE--30k--138 MODELS--Dead Lift, Narrow Outside Rail 35"

U3-HH-156

SINGLE AXLE--30k--156 MODELS--Dead Lift, Narrow Outside Rail 35"

U4-HH-156

TANDEM AXLE--40k--156 MODELS--Dead Lift, Narrow Outside Rail 35"

U4-HH-174

TANDEM AXLE--40k--174 MODELS--Dead Lift, Narrow Outside Rail 35"

U5-HH-156

TANDEM AXLE--50k--156 MODELS--Dead Lift, Narrow Outside Rail 35"

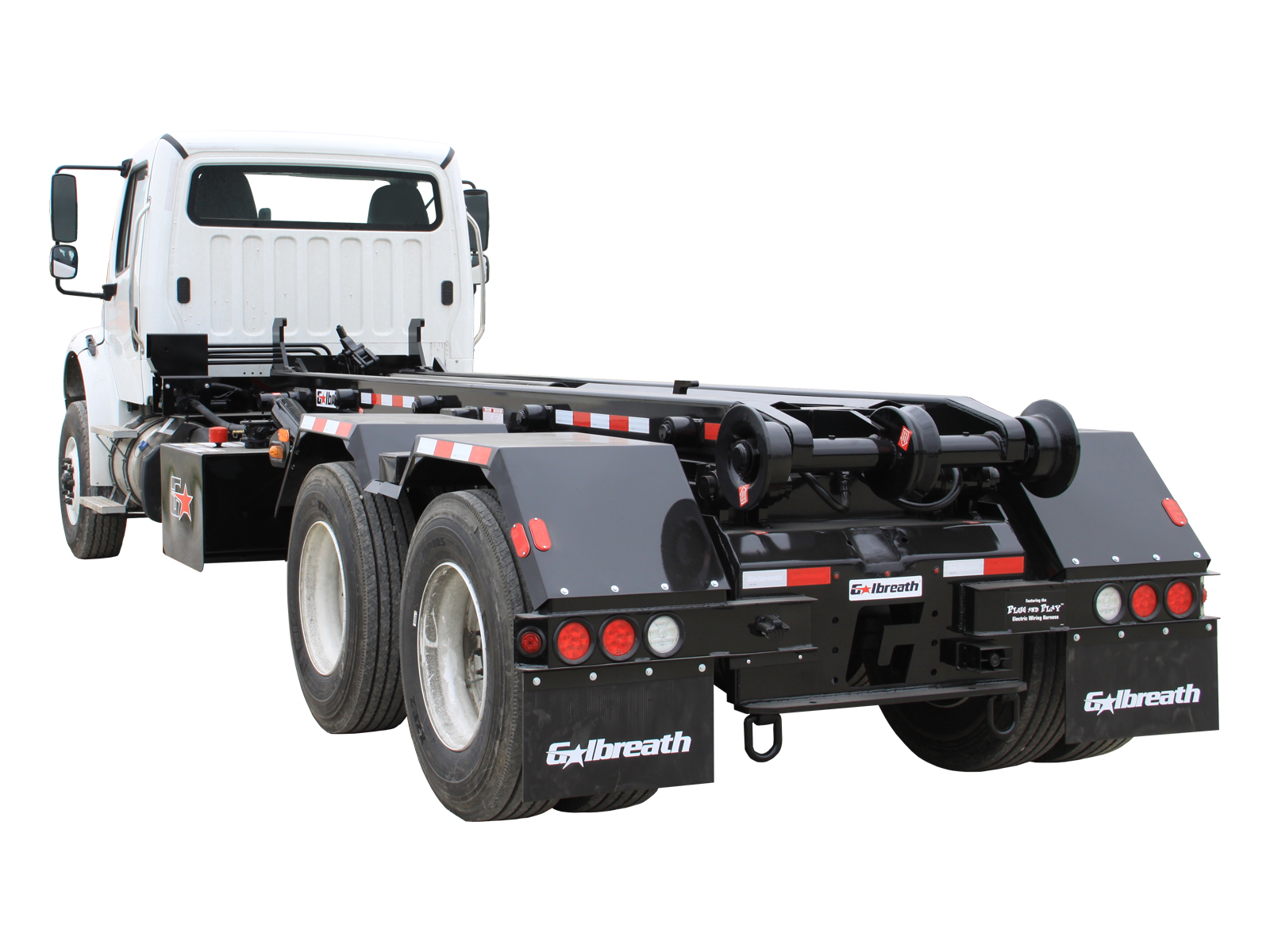

U5-HH-174

TANDEM AXLE--50k--174 MODELS--Dead Lift, Narrow Outside Rail 35"

U5-HH-194

TANDEM AXLE--50k--194 MODELS--Dead Lift, Narrow Outside Rail 35", Telescopic Lift Cylinders

U5-EH-174

TANDEM AXLE--50k--174 MODELS--Extendable Tail 80", Dead Lift, Narrow Outside Rail 35"

U5-EH-194

TANDEM AXLE--50k--194 MODELS--Extendable Tail 80", Dead Lift, Narrow Outside Rail 35"

U5-SI-174

TANDEM AXLE--60k--174 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

U5-SI-186

TANDEM AXLE--60k--186 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

U5-SI-194

TANDEM AXLE--60k--194 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

UM-HH-194

TANDEM AXLE--50k--194 MODELS--Michigan 9' Spread Lift Axle--Outside Rollers, Narrow Outside Rail 35" Deadlift

UT-HH-174

TANDEM AXLE--50k--174 MODELS--Dead Lift, Narrow Outside Rail 35", Telescopic Lift Cylinders

UT-HH-194

TANDEM AXLE--50k--194 MODELS--Dead Lift, Narrow Outside Rail 35", Telescopic Lift Cylinders

UT-EH-174

TANDEM AXLE--50k--174 MODELS--Extendable Tail 80", Dead Lift, Narrow Outside Rail 35"--Telescopic Lift Cylinders

UT-EH-194

TANDEM AXLE--50k--194 MODELS--Extendable Tail 80", Dead Lift, Narrow Outside Rail 35"--Telescopic Lift Cylinders

AF-HH-174

TANDEM AXLE--50k--174 MODELS--Dead Lift, Narrow Outside Rail 35"

AF-HH-194

TANDEM AXLE--50k--194 MODELS--Dead Lift, Narrow Outside Rail 35"

AF-EH-174

TANDEM AXLE--50k--174 MODELS--Extendable Tail 60", Deadlift, Narrow Outside Rail 35"

AF-SI-174

TANDEM AXLE--60k--174 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AF-SI-186

TANDEM AXLE--60k--186 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

AF-SI-194

TANDEM AXLE--60k--194 MODELS--Inside / Outside / Deadlift, Narrow Outside Rail 35"

Applications

Designed with no tail to deadlift containers straight off the ground. Small footprint for use in tight spaces. Use with deadlift containers only.
